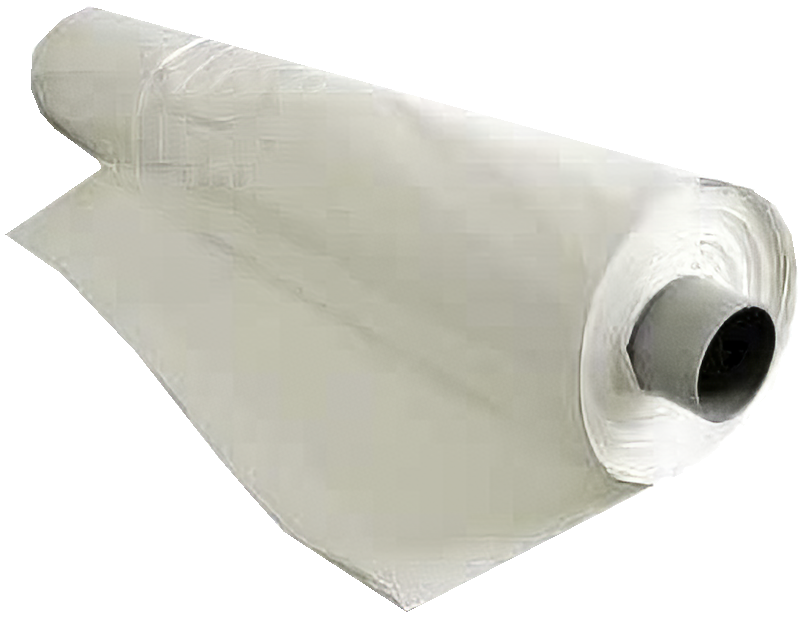

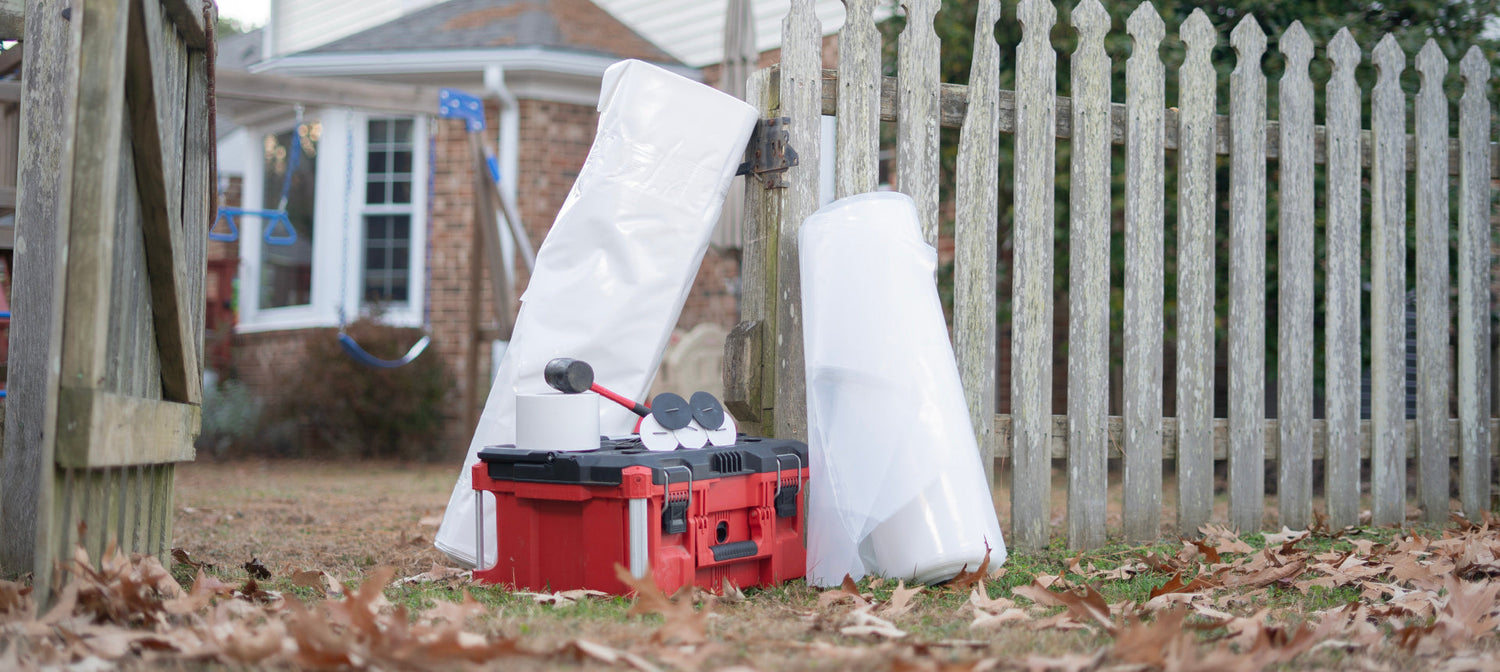

Crawl Space Vapor Barrier

"Mil" measures thickness (1 mil = 0.001"). Thicker barrier lasts longer and resists damage better.

6 MIL: 0.006" thick, adequate for low-traffic areas you'll rarely access. Tears more easily during installation and from foot traffic. Best for temporary protection or budget projects. Lifespan: 5-10 years.

10 MIL: 0.01" thick (67% thicker), commercial-grade durability. Resists installation tears and withstands regular foot traffic for maintenance access. Better protection against punctures from equipment, tools, and crawling. Lifespan: 15-20+ years.

Cost vs. Value: 10 mil costs 40-60% more upfront but lasts 2-3× longer. For crawl spaces with dehumidifiers, sump pumps, or regular access needs, the durability justifies the cost.

Rule of thumb: Use 6 mil only for spaces you'll never enter. Use 10 mil anywhere requiring maintenance access or long-term reliability.

Professional installation recommended for large spaces, but capable DIYers can handle smaller crawl spaces with proper preparation.

Preparation:

1. Remove sharp debris (rocks, wood, metal) that could puncture barrier
2. Roughly level soil—knock down high spots, fill deep depressions
3. Address drainage issues before installing (fix gutters, add perimeter drains if needed)

Installation Steps:

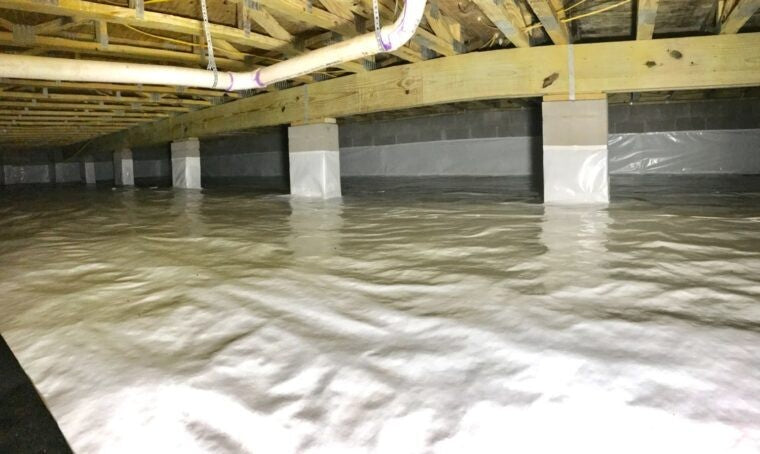

1. Roll out barrier across floor, allowing 6-12" to extend up walls
2. Overlap seams by 6-12" where sections meet
3. Tape all seams with vapor barrier tape (not regular duct tape)

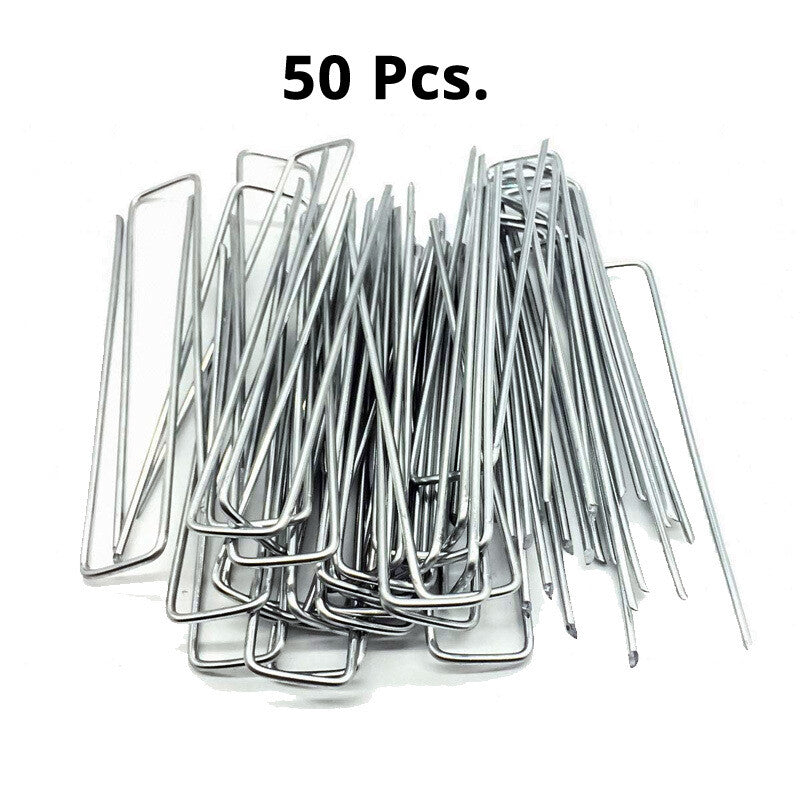

4. Stake to floor every 3-4 feet using capped barrier stakes
5. Attach to walls with Beast Butyl Tape or WhiteCap fasteners
6. Seal around posts by cutting X-pattern, wrapping barrier up post 6-12", and taping

Materials Needed:

• 10 mil poly (measure square footage + 20% extra)
• Vapor barrier tape for seams
• Stakes with caps for floor anchoring
• Wall attachment system (butyl tape or fasteners)

Time: Expect 4-8 hours for typical 800 sq ft crawl space. Take your time with sealing—gaps defeat moisture protection.

Complete vapor barrier installation requires supporting products for proper sealing and long-term performance.

Essential Accessories:

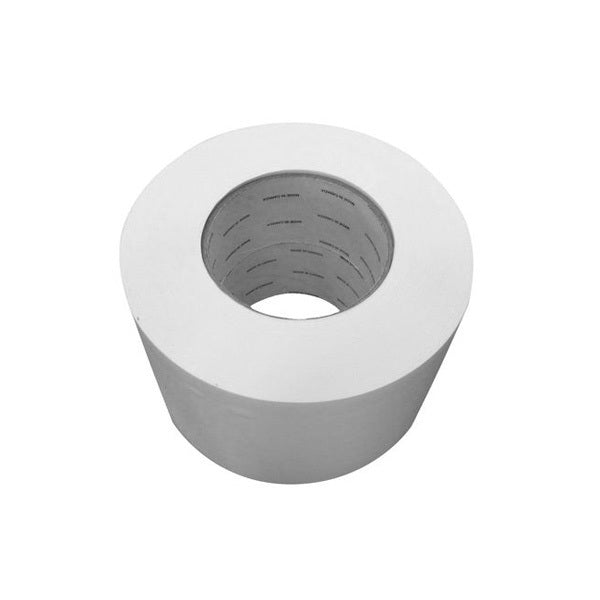

Vapor Barrier Tape (4" × 180'): Seals all seam overlaps. Regular duct tape fails in crawl space humidity—use specialized vapor barrier tape designed for moisture environments. One roll covers ~180 linear feet of seams.

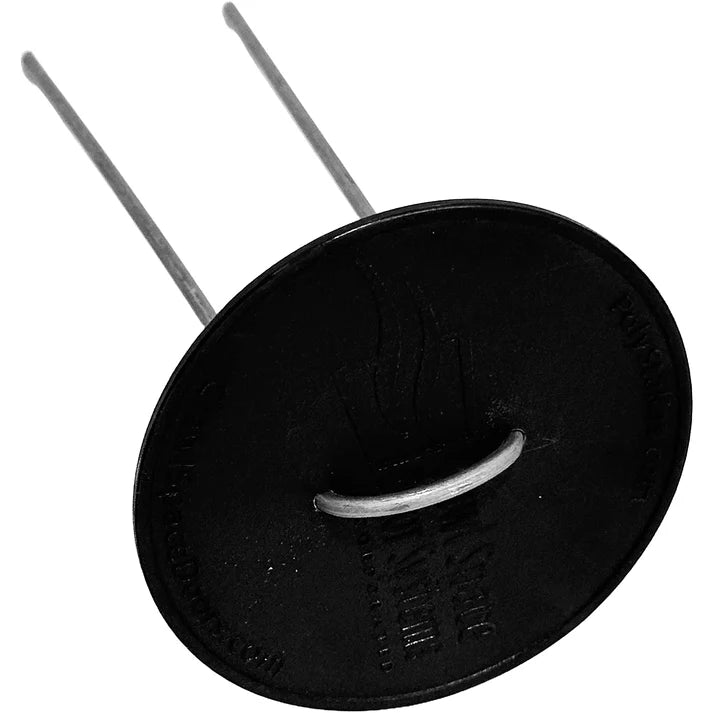

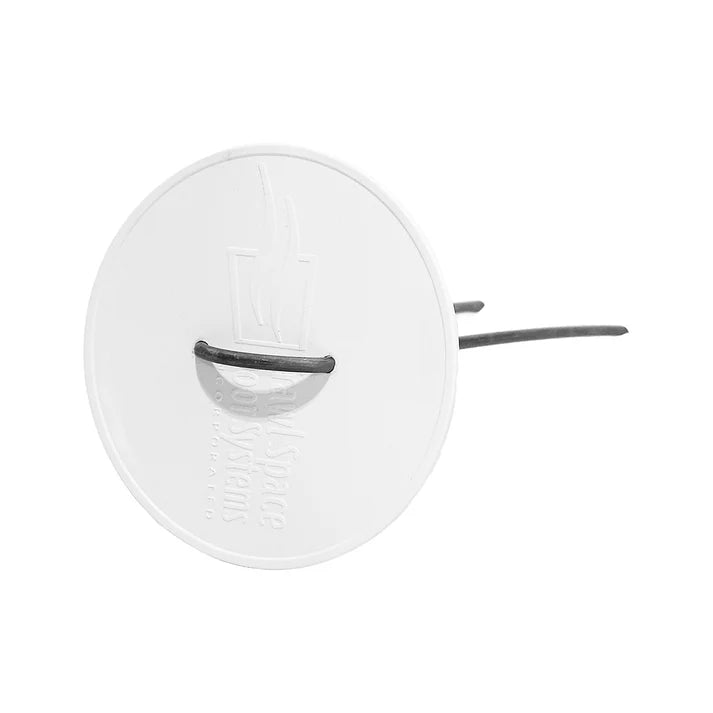

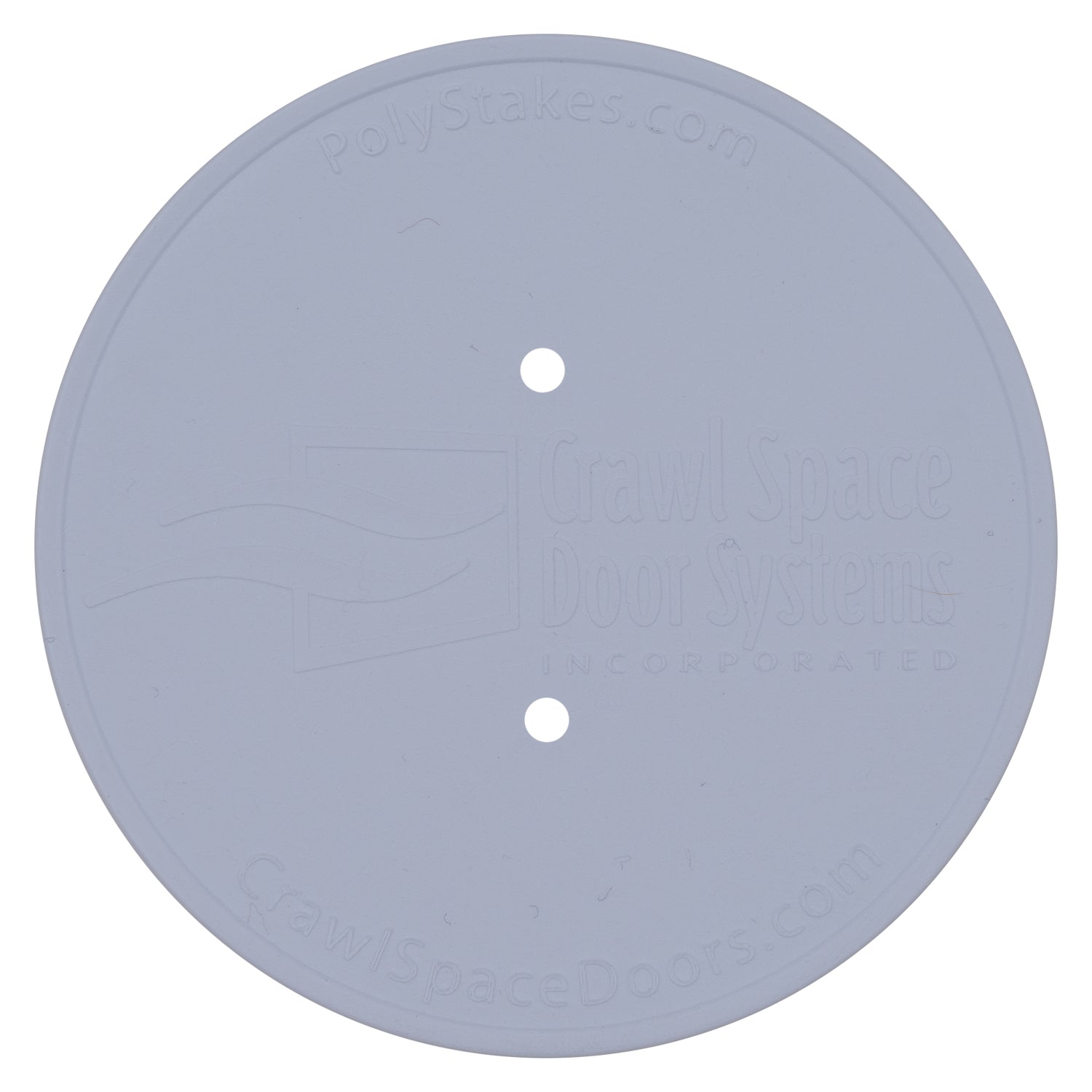

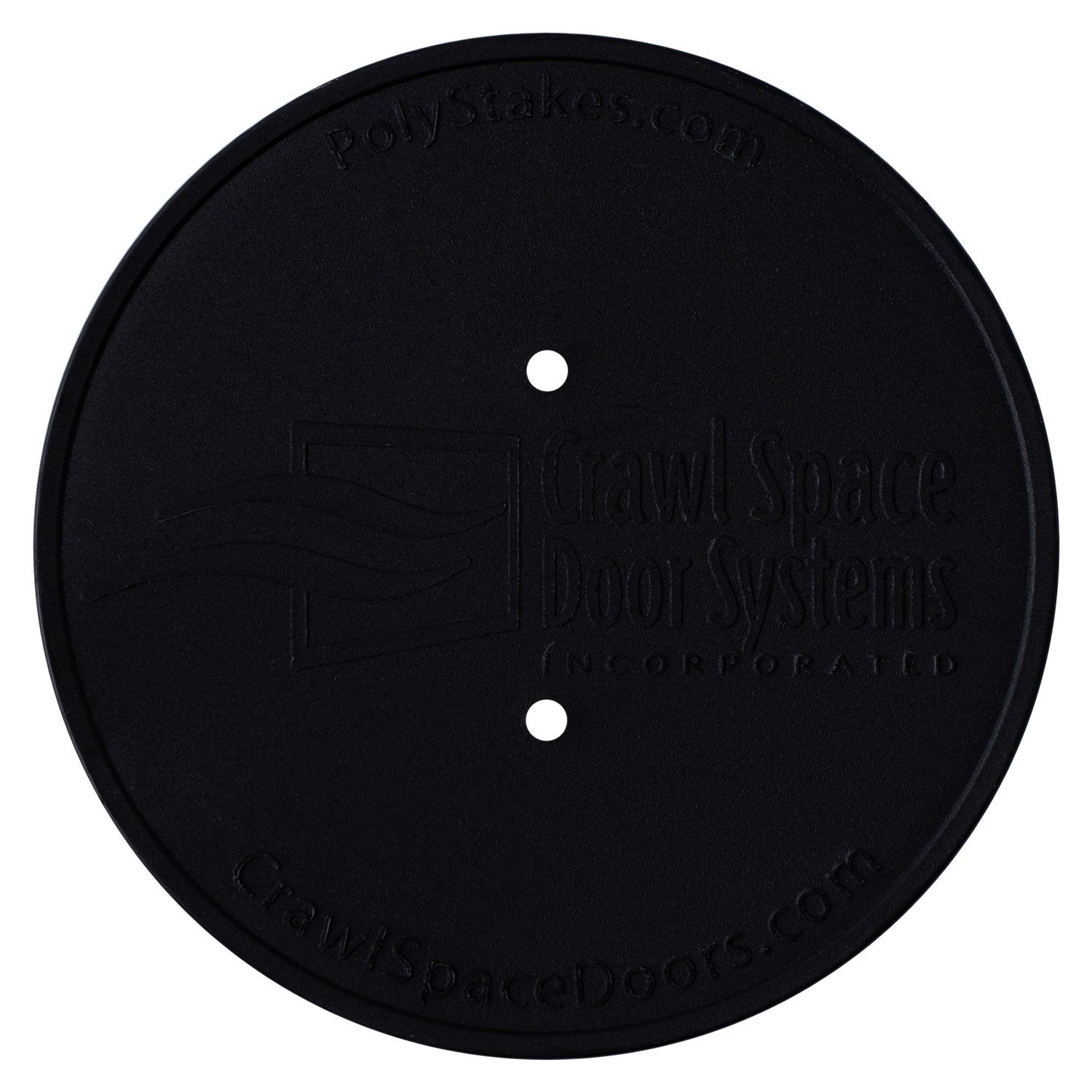

Capped Vapor Barrier Stakes (50-pack): Anchors barrier to soil every 3-4 feet without tearing. Caps distribute pressure and prevent punctures. Typical 800 sq ft space needs 100-150 stakes (2-3 packs).

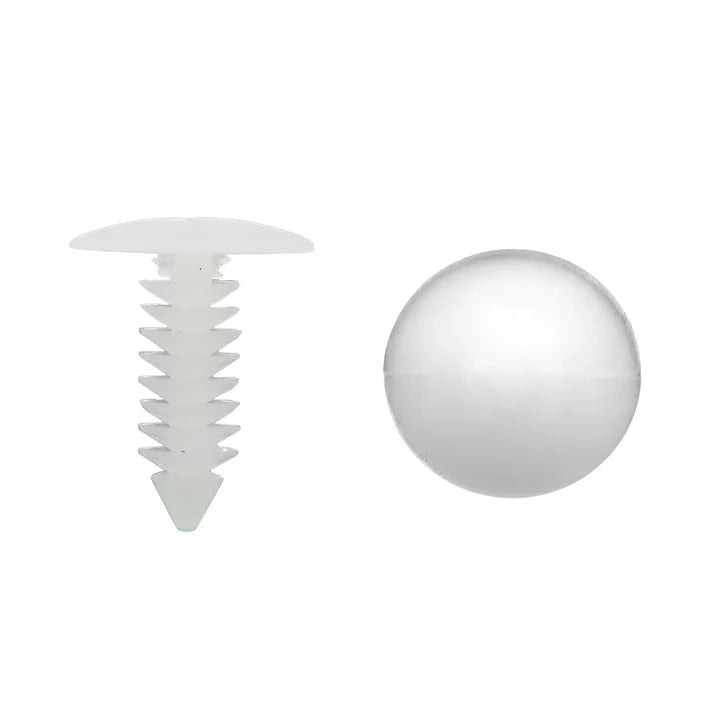

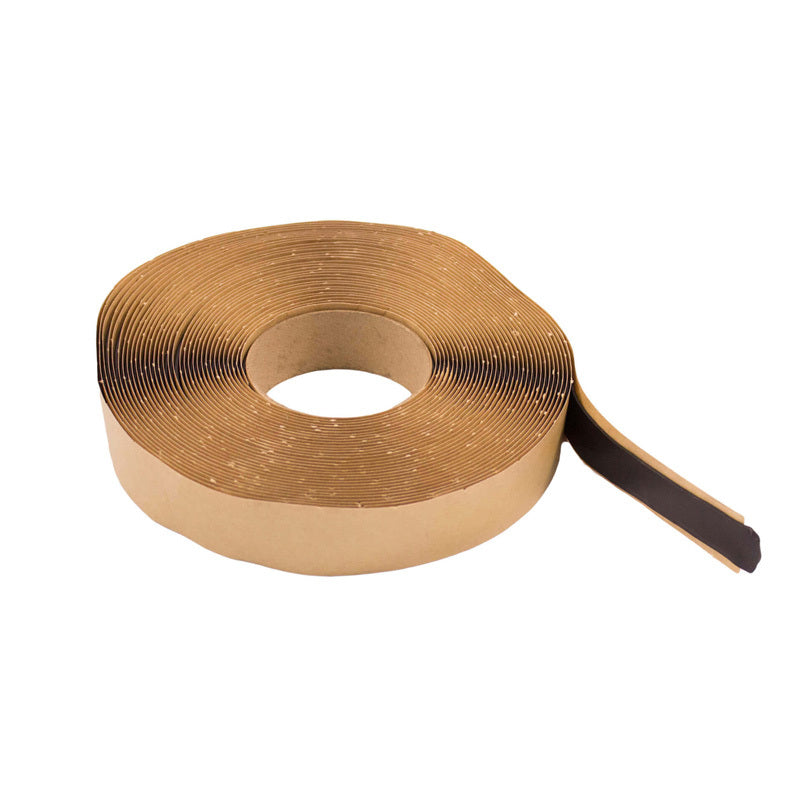

Wall Attachment: Beast Butyl Tape or WhiteCap Fasteners secure barrier 6-12" up foundation walls, creating continuous moisture envelope around perimeter.

Optional but Recommended:

Drainage Matting: Creates air gap under barrier for water drainage in spaces with occasional standing water or very wet soil.

Complete System Components:

For full encapsulation, also need vent covers (recessed or outward mounted), non-louvered access door, dehumidifier for humidity control, and sump pump if groundwater is present.

Material Estimate (800 sq ft space):

• Vapor barrier: 800+ sq ft coverage
• Tape: 2-3 rolls
• Capped stakes: 2-3 packs
• Wall attachment: 2-3 rolls butyl tape or 100-150 fasteners
• Vent covers: 6-8 typical

Budget for the complete system—accessories ensure proper installation that maximizes barrier effectiveness.

Remove sharp debris, but perfect leveling isn't necessary.

Must Remove:

• Sharp objects (pointed rocks, glass, metal, wood splinters)
• Large debris (boards, concrete chunks, construction waste)
• Large roots and stumps

Can Leave:

• Small smooth stones under 2"
• Minor soil irregularities
• Compacted dirt

Basic Leveling:

• Rake out high spots where barrier might bridge and tear
• Fill deep depressions where water could pool
• Create gentle slope toward drainage if possible

Why It Matters: Sharp objects puncture barrier, creating moisture entry points. Proper prep extends barrier life from 5-10 years to 15-20+ years. A few hours of preparation prevents costly premature failure.

Drainage Priority: If you have standing water, fix drainage (perimeter drains, sump pump) BEFORE installing barrier. Vapor barrier blocks evaporation but doesn't remove standing water.
